Automatic L-Sealer with Shrink Tunnel
the best automatic notebooks, coir pith packing machine, automatic L-sealer with shrink tunnel in Coimbatore, and shrink wrapping machine.
Automatic L Sealer Specification
| Model No | CP DQL 5545 |
| Voltage (V/Hz) | 220V 50HZ |
| Capacity | 0-30 pcs/min |
| Max packing size (mm) | L+2H≤550 mm; W+2H≤450 mm; H≤140 mm |
| Max sealing size (mm) | L550×W450 |
| Sealing temperature | 180ºC-250ºC depends on the thickness of the film and environmental temperature. |
| Packing material | POF |
| Dimension (L×W×H) (mm) | 1760x940x1580 |
| Net Weight (kg) | 320 kg (approximate) |

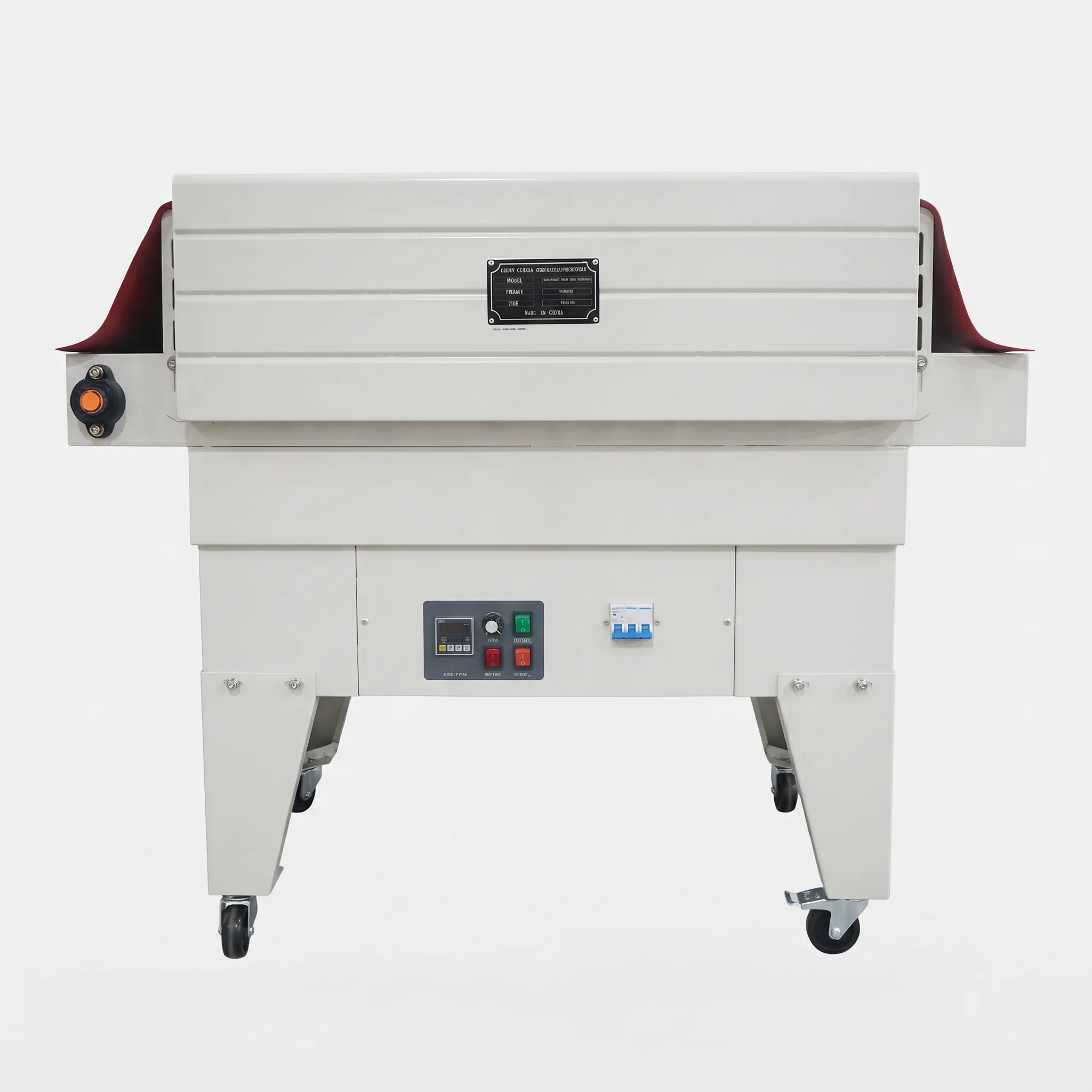

Shrink Tunnel Specification
| Model No | CP DSD 4520 |
| Voltage (V/Hz) | 380V 50HZ |
| Capacity | 0-16 m/min |
| Max packing size (mm) | W450×H200 |
| Max sealing size (mm) | Loading weight: 18 kg |
| Packing material | POF |
| Machine Dimension (LxWxH) | External (1600×719×1444) Tunnel (1200×450×200) |
| Weight (kg) | 180 kg (approximate) |
Product Description

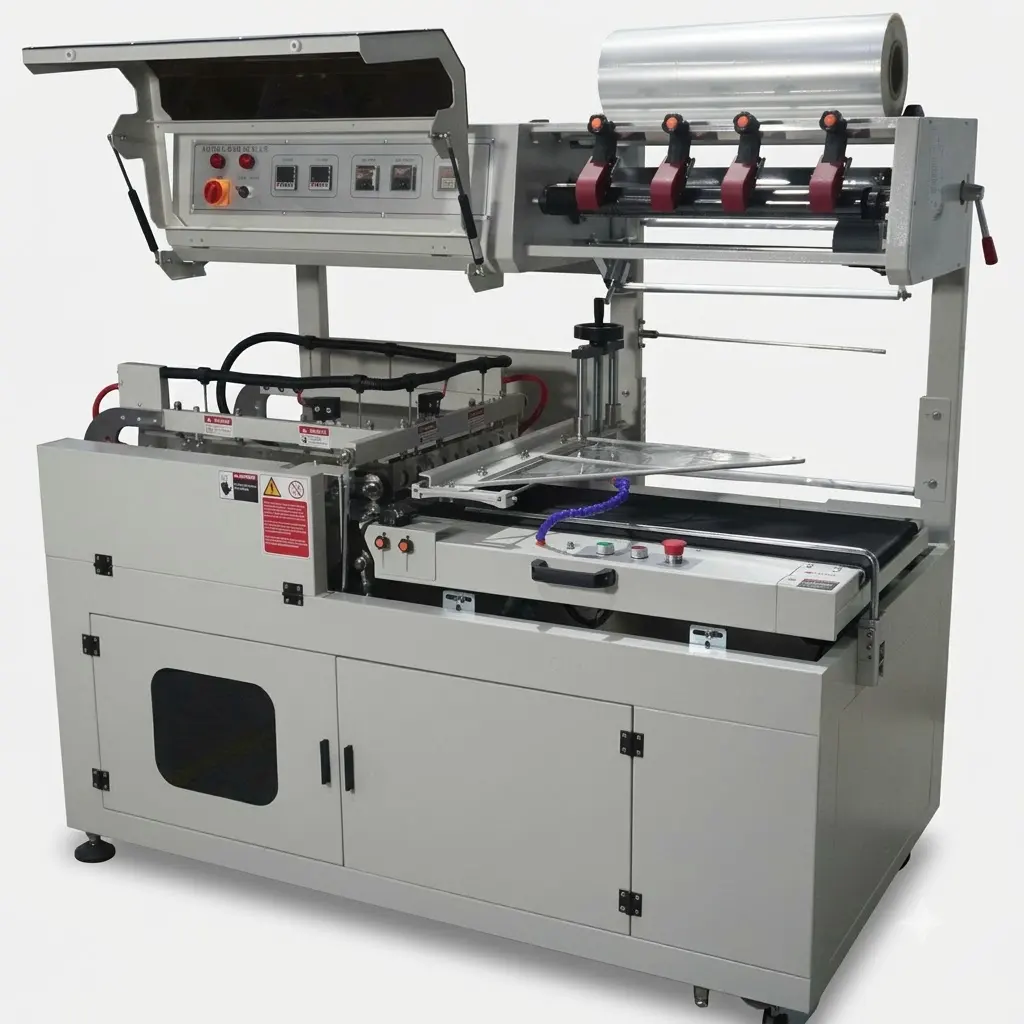

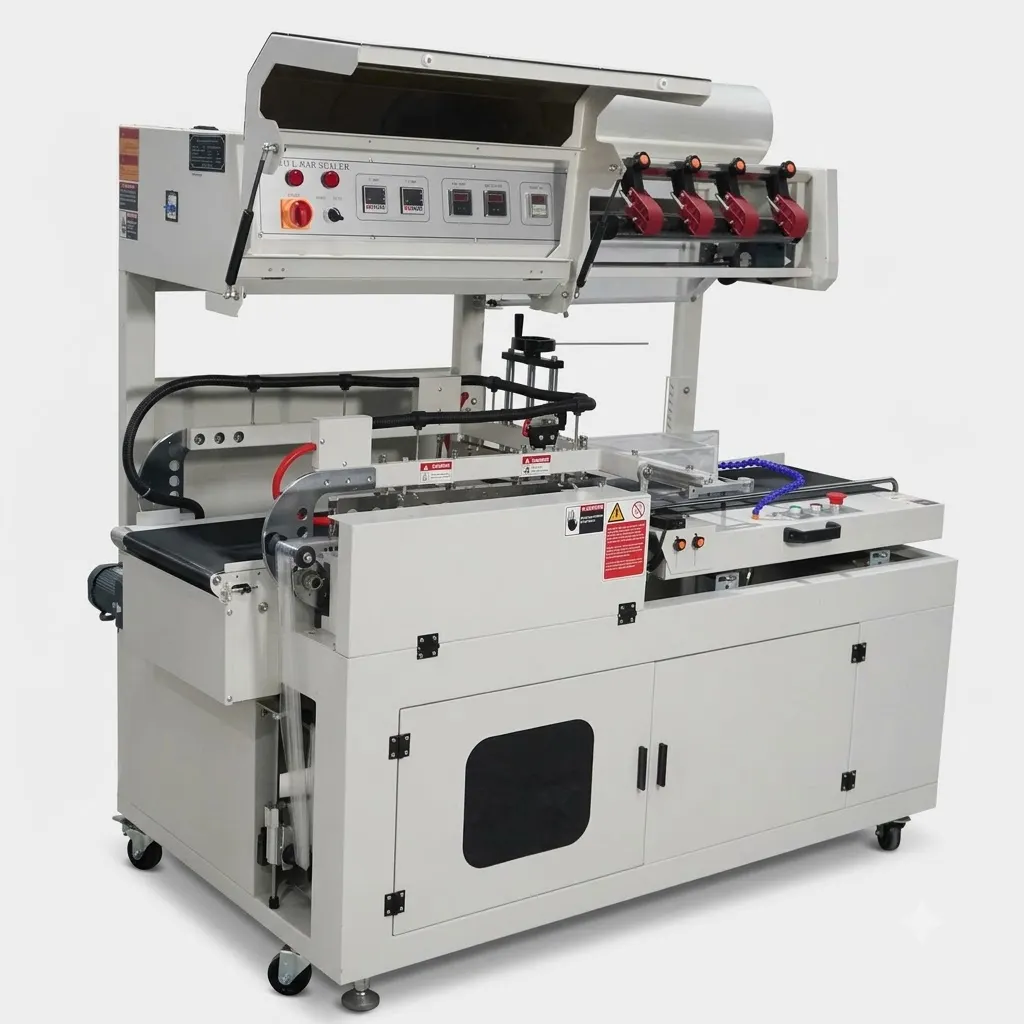

Fully Automatic L-Sealer with Shrink Tunnel
Package smarter with our fully automatic L-Bar Sealer and Shrink Tunnel system — a complete two-in-one solution built for consistent, high-quality shrink-wrapping at scale. From film sealing to heat-shrink finishing, this system automates your packaging line end-to-end, cutting labor costs while delivering a clean, retail-ready presentation on every pack.
How It Works
- Feed – Products are placed onto the conveyor and fed into the L-sealer.

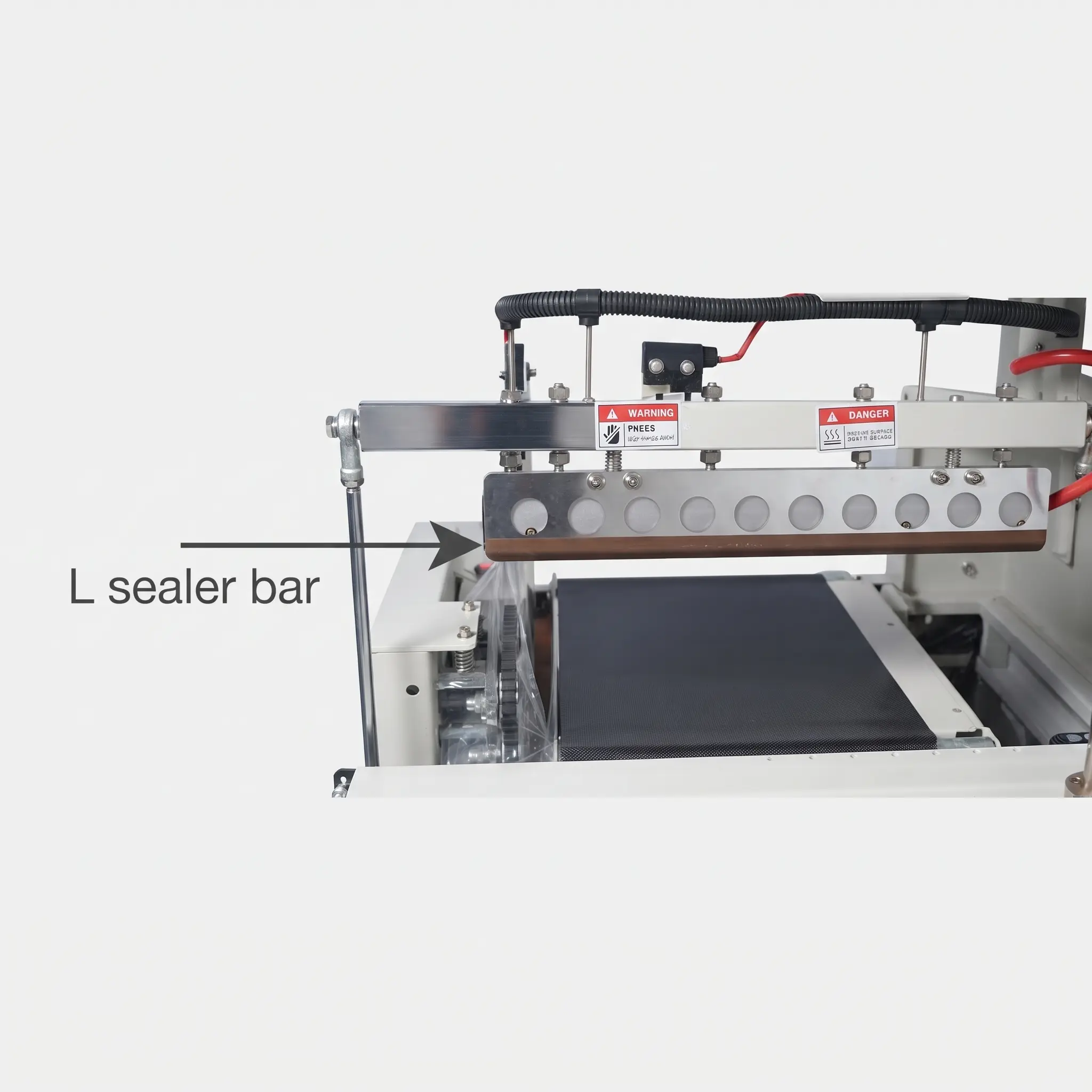

- Wrap & Seal – The L-shaped sealing bar wraps the product in POF film and seals it with precision-controlled heat (180°C–250°C, adjustable for film thickness and ambient conditions).
- Trim – Excess film is automatically cut away for a clean finish.
- Shrink – Sealed packs move directly into the shrink tunnel, where circulating hot air shrinks the film tightly around the product.
- Cool & Inspect – Packs exit, cool, and are ready for final inspection and dispatch.
Key Features
- Fully automatic operation — minimal manual handling required

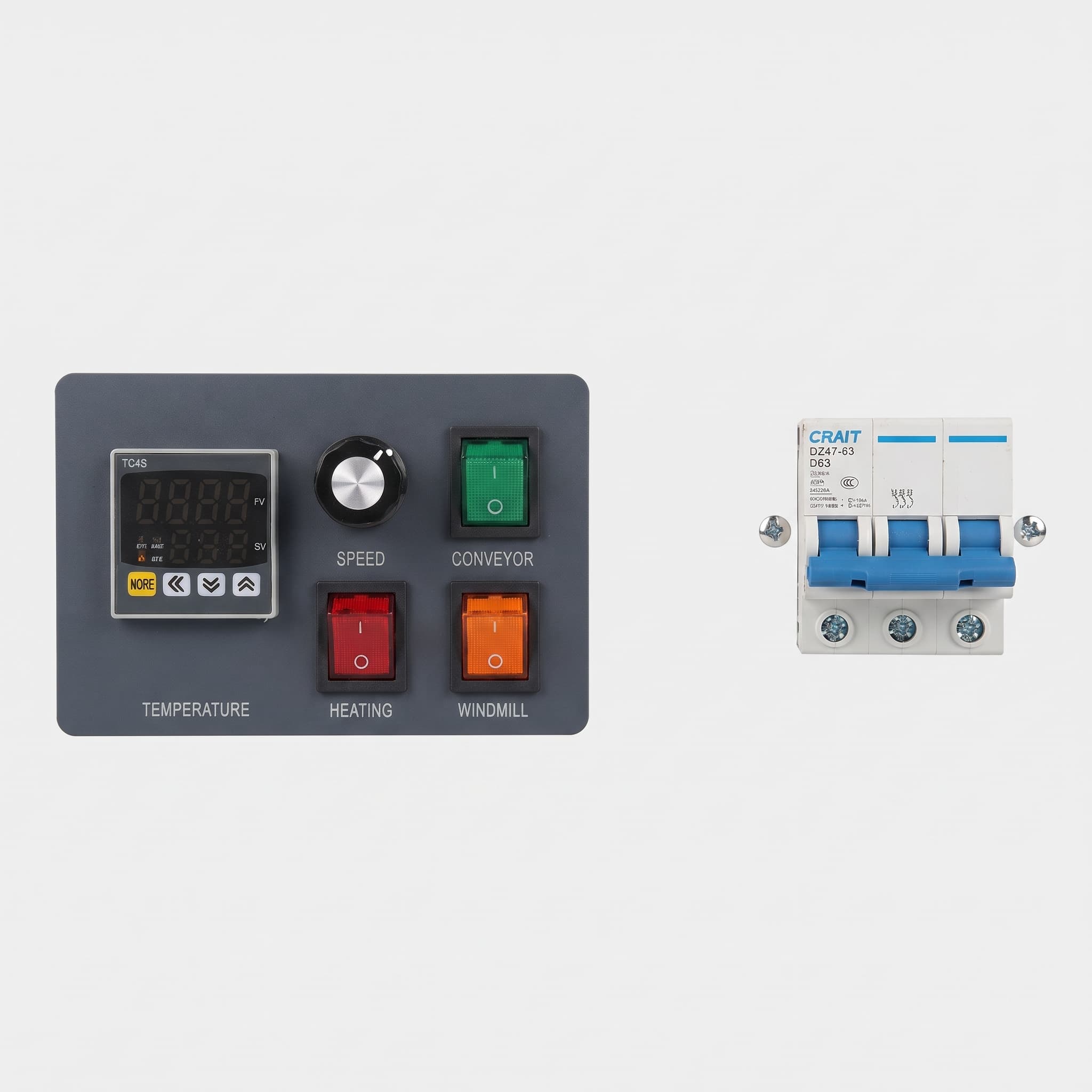

- Adjustable sealing temperature and speed for different products and film types
- Compact, space-efficient footprint for easy line integration
- Durable build rated for continuous, high-volume production
- Compatible with standard POF shrink film
Applications
Food & beverage, pharmaceuticals, electronics, consumer goods, retail packaging, and general manufacturing — anywhere consistent, tamper-evident, shelf-ready packaging is needed.
What’s Included
L-sealer unit, shrink tunnel, standard tooling and operation manual. (Add warranty terms, installation/training support, or spare parts kit here if applicable.)
Get a Quote → Contact us for pricing, lead time, and a live demo of the CP DQL 5545 + CP DSD 4520 system.
