Semi Automatic Strapping Machine-Basic Economy Model
pp strapping machine in Coimbatore, Tamil Nadu, Carton Box Packing Machine, Bundle Packing Machine, Patti packing machine in Coimbatore, Low Budget Packing Machine.
| Model Number | CP 105 H ECO |
| Strap Width (mm) | 9-15 adjustable |
| Power Source (V/Hz) | 220V 50/Single Phase |
| Strapping Speed (sec) | 2.5 sec/strap > |
| Strap Force (Newton) | 450 |
| Power (W) | 320 W |
| Tension Strength | 5-50 kg/Max (Adjustable) |
| Working Table Height (mm) | 740 |
| Machine Dimension (mm) | 895x565x740 |
| Net Weight (Kg) | 75 Kg (Approximate) |
Product Description

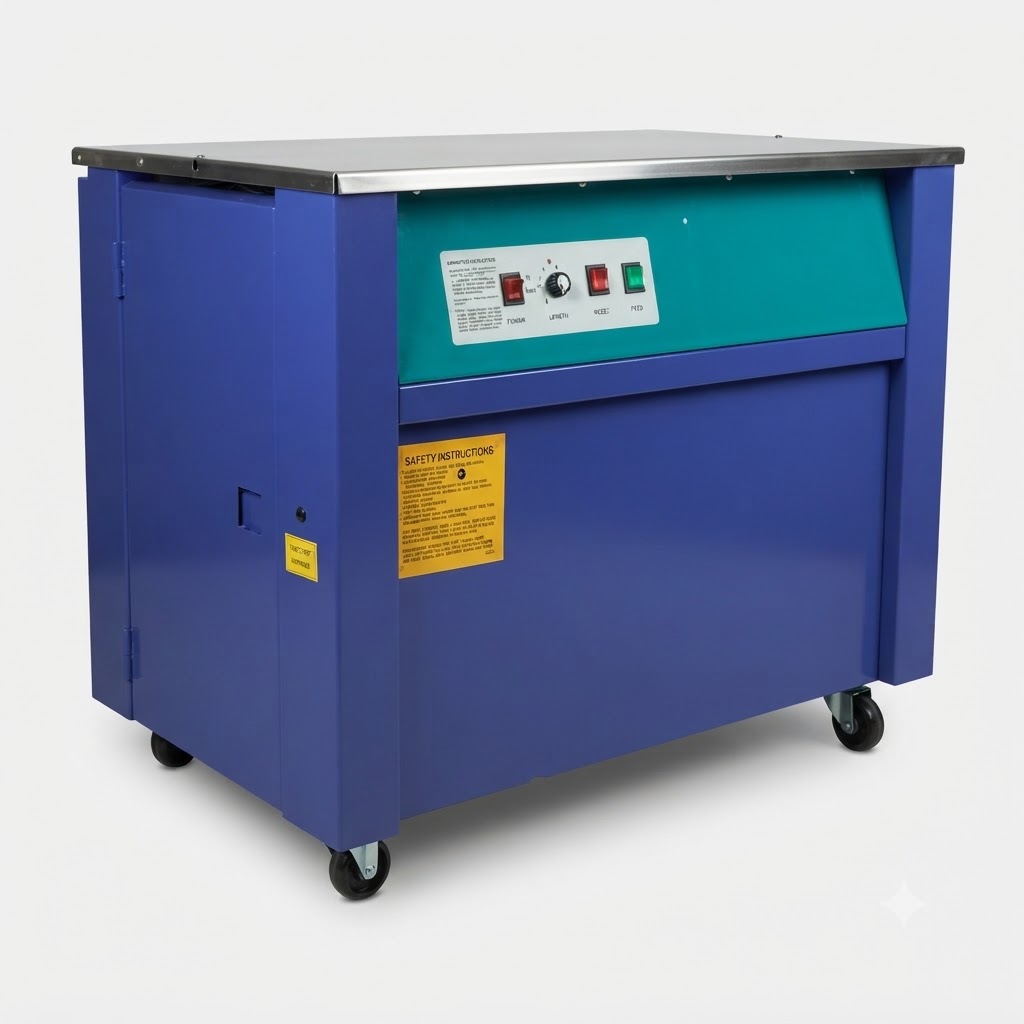

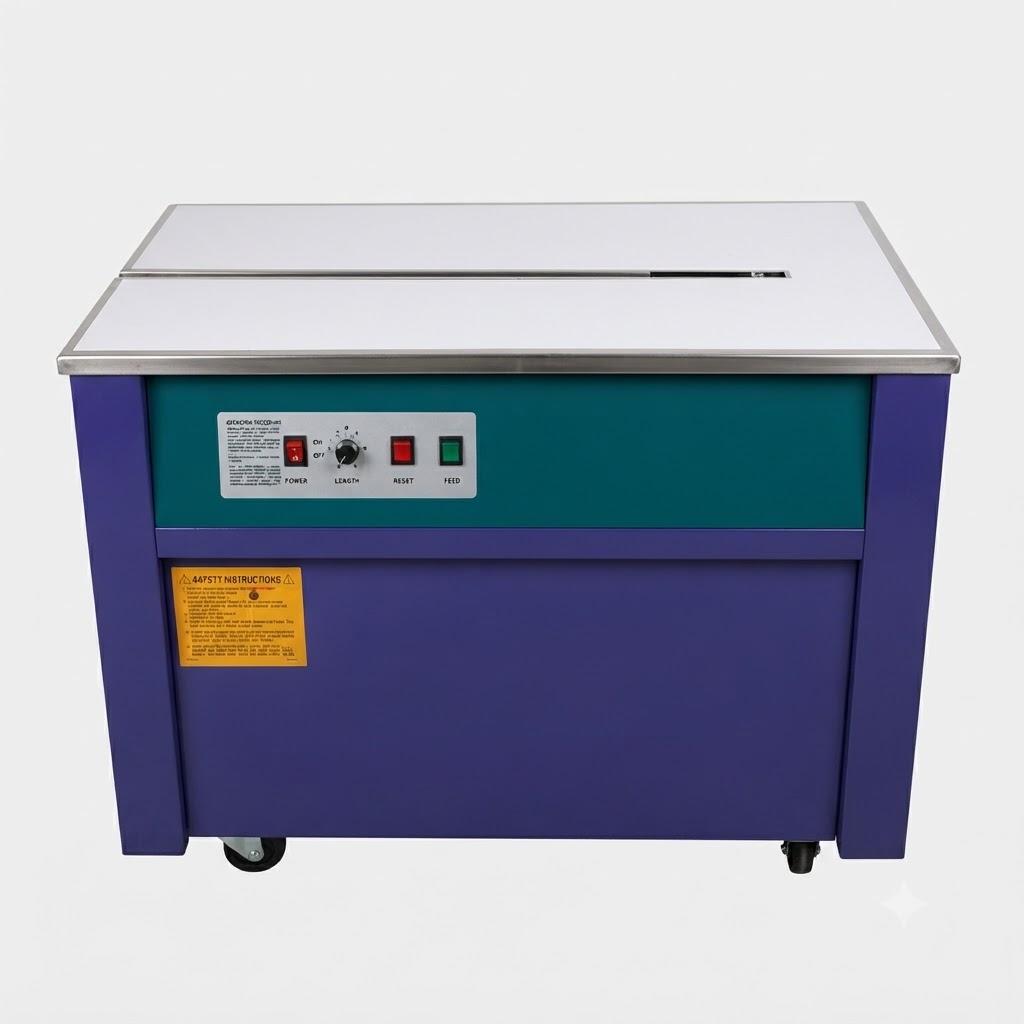

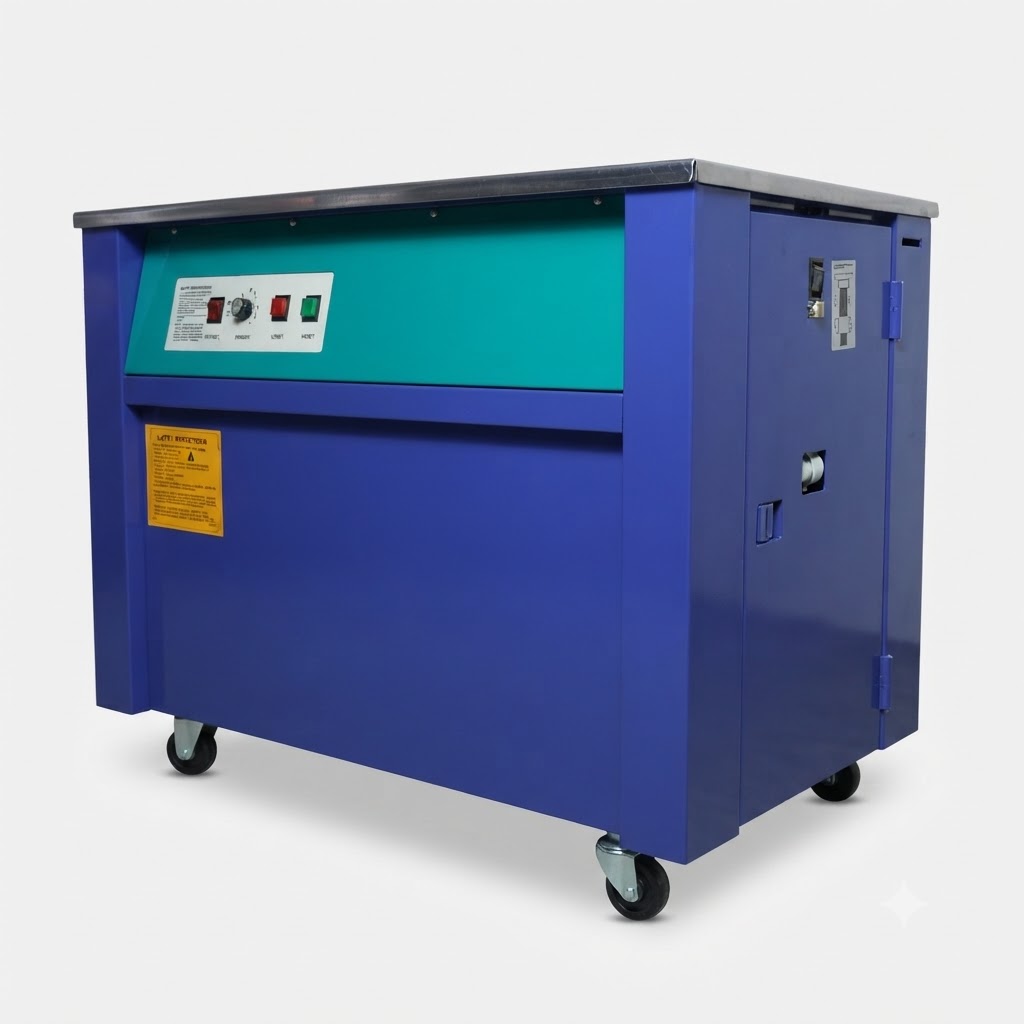

Strapping Machine—CP 105 H ECO
Keep your packaging line moving with our Strapping Machine — built for fast, secure strap tensioning and sealing across cartons, bundles, and pallets. With adjustable tension and quick strap cycles, it’s a reliable, economical solution for businesses that need secure, tamper-evident bundling at speed.
How It Works
- Position – The product or carton is placed on the working table, with strap looped around it.
- Tension – The machine automatically tensions the strap to the pre-set force.
- Seal & Cut – The strap is heat-sealed (friction-welded) at the joint and excess strap is trimmed automatically.
- Release – The strapped product is removed, ready for stacking or dispatch.
Key Features
- Adjustable strap tension (5–50 kg max) for different load requirements
- Fast strapping cycle — approximately 2.5 seconds per strap
- Adjustable strap width (9–15 mm) for flexible packaging needs
- Strong 450N strap force for secure, reliable bundling
- Compact, lightweight build ideal for economical, everyday use
- Comfortable working table height for easy operator use
- Simple, low-maintenance operation
Applications
Carton sealing, pallet bundling, box reinforcement, and general packaging in industries such as e-commerce, logistics, manufacturing, and warehousing — anywhere secure, tamper-evident strapping is needed before shipping or storage.
What’s Included
Strapping machine unit, standard tooling, and operation manual. (Add warranty terms, installation/training support, or a spare parts kit here if applicable.)
