Pickle Filling Machine
The automatic pickle filling machine, Achar Packing machine, is perfect for filling jars and bottles with pickled products. Pickle Filling Machine in Coimbatore, Tamil Nadu, and Kerala.
| Model Number | CP-1000 PFM |
| Voltage (V/Hz) | 220/50 |
| Power (w) | 20 |
| Air Pressure (Mpa) | 0.4 – 0.6 |
| Filling Range (ml) | 100-1000 |
| Hopper Capacity (L) | 90 |
| Filling Capacity (T/M) | 10-18 |
| Filling Accuracy | <= 1% |
| External Dimensions | 1100L x 4230W x 700H |
| Net Weight (kg) | 40 |
Product Description

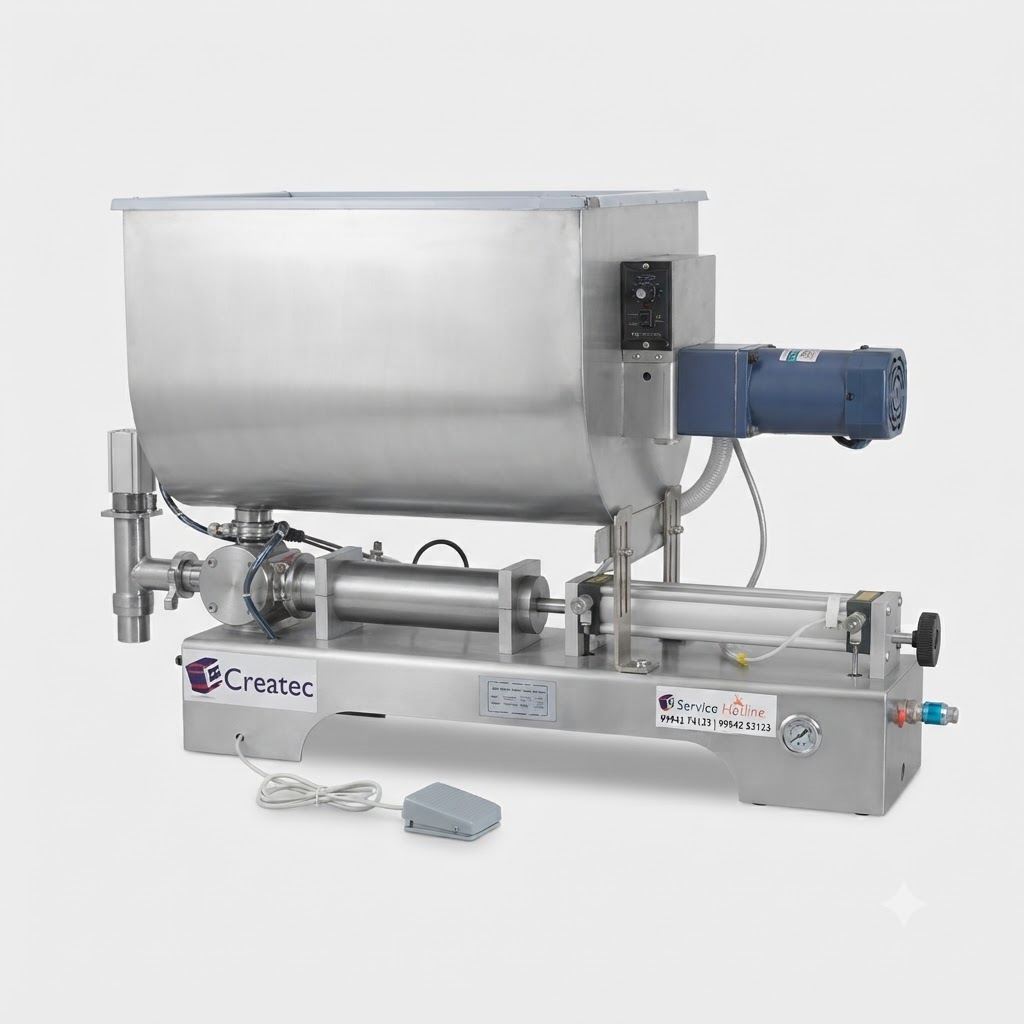

Pickle Filling Machine — CP-1000 PFM
Fill liquid and semi-liquid products with accuracy and speed using our Pickle Filling Machine — a pneumatic, piston-driven filler designed for consistent volumetric filling. Ideal for pickle, sauce, and similar viscous product packaging where precision and hygiene matter.
How It Works
- Load – Product is loaded into the hopper for continuous supply.
- Fill – Compressed air drives the piston filling mechanism, dispensing the set volume into each container.
- Adjust – Fill volume is set within the 100–1000 ml range to match container size.
- Discharge – Filled containers move off for capping, labeling, or further packaging.
Key Features
- Precise volumetric filling — accuracy within ≤1%
- Adjustable fill range from 100 ml to 1000 ml
- Pneumatic piston filling system for smooth handling of thick or chunky products
- Good throughput — 10–18 fills per minute
- Generous 90-liter hopper capacity for continuous operation
- Low power consumption, simple to operate and maintain
Applications
Pickles, sauces, chutneys, and other viscous or chunky liquid products — ideal for food processing units and small to medium-scale manufacturers needing accurate, hygienic filling.
What’s Included
Pickle filling machine unit, standard tooling, and operation manual. (Add warranty terms, installation/training support, or spare parts kit here if applicable.)
