5Kg Band Sealing Machine
5 Kg Band Sealing Machine
| Model Number | CP-900 V 5kg |
| Voltage(V/Hz) | AC 220/50 110/60 |
| Power (W) | 600 W |
| Sealing Speed (m/min) | 0-12(0-16) |
| Sealing Width(mm) | 8-10 |
| Temperature Range (Deg.c) | 0-300℃ |
| Max. Height adjusted range | 450 mm |
| Min. Height adjusted range | 150 mm |
| Film Thickness (mm) | 0.08 |
| Distance from the Sealing Centre | 150-270 |
| Machine Dimension | 840x380x450 |
| Net Weight (kg) | 36 Kg |
Product Description

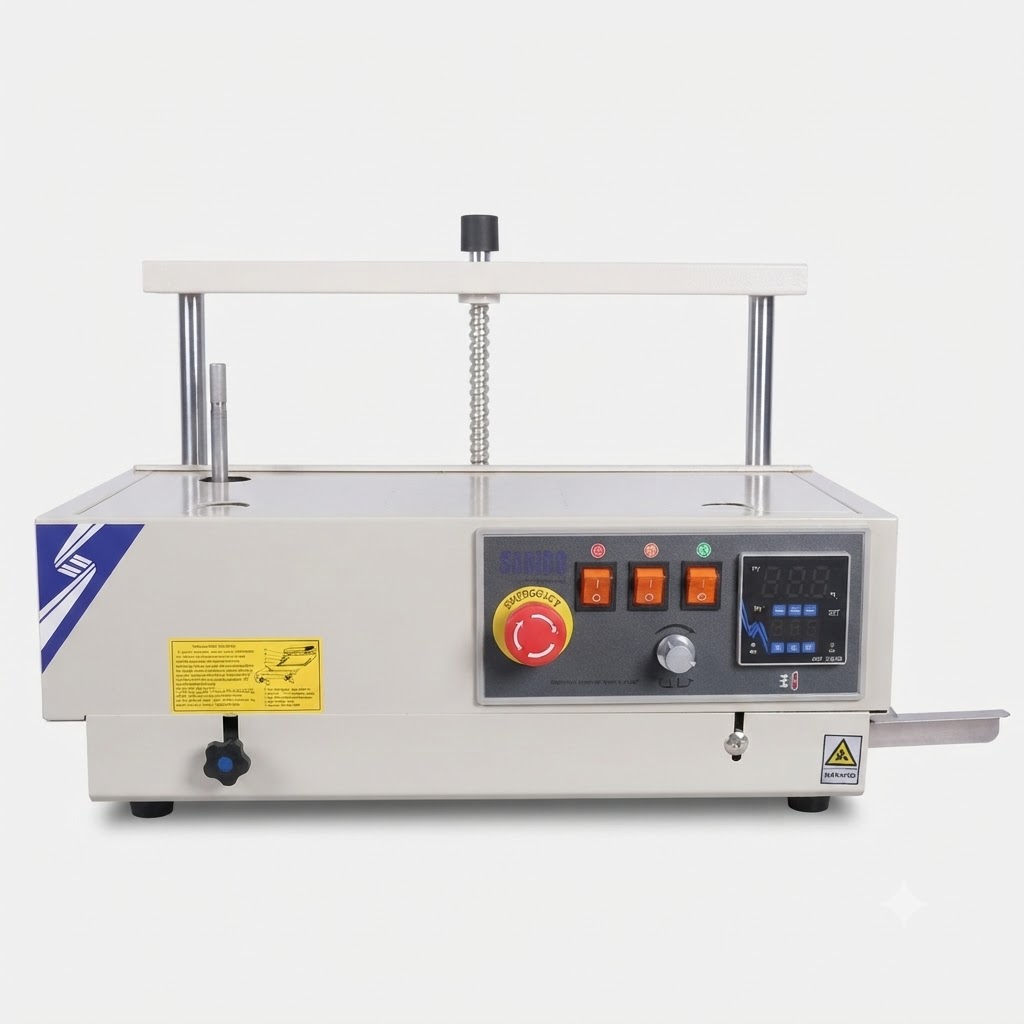

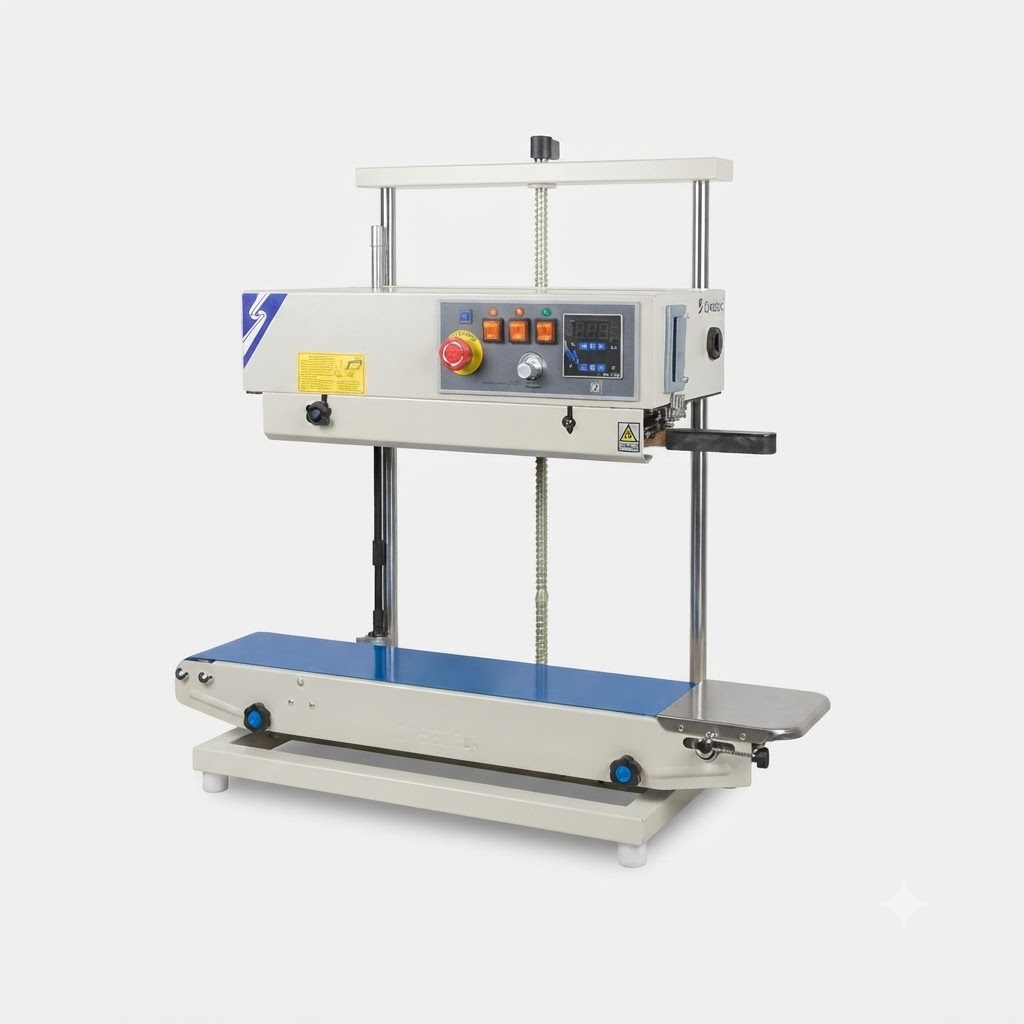

5 Kg Band Sealing Machine — CP-900 V
Seal bags quickly and consistently with our 5 Kg Band Sealing Machine — a continuous-band sealer built for reliable, high-speed sealing of filled bags up to 5kg. With adjustable height, speed, and temperature settings, it’s a versatile solution for food, retail, and general product packaging.
How It Works
- Position – The filled bag opening is placed at the sealing entrance, at the adjustable height setting.
- Feed – The bag is continuously fed through via the conveyor band.
- Seal – The heated sealing band bonds the bag opening at the set temperature and speed.
- Discharge – The sealed bag exits the machine, ready for packing or dispatch.
Key Features
- Continuous band sealing for fast, uninterrupted operation
- Adjustable sealing speed (0–12 m/min, up to 16 m/min)
- Wide temperature range (0–300°C) for compatibility with various film/bag materials
- Adjustable working height (150–450 mm) to suit different bag sizes
- Compact footprint, suited for small to medium production lines
- Reliable, consistent seals for products up to 5 kg
Applications
Snack foods, dry goods, grains, pulses, and other bagged products up to 5kg — ideal for food processing units, retail packing stations, and small to medium-scale manufacturing.
What’s Included
Band sealing machine unit, standard tooling, and operation manual. (Add warranty terms, installation/training support, or spare parts kit here if applicable.)
